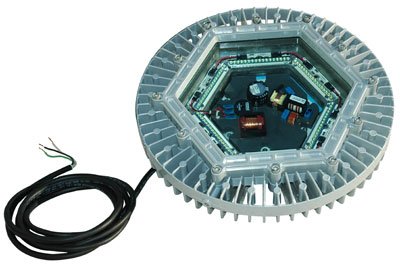

Magnalight Class 1 Division 1 & II Explosion Proof 150 Watt High Bay LED Light Fixture 10,000 Lumens
The Magnalight HBLP-1MLED High Bay light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class 1 Division 1&2, Class 2 Division 1&2 explosion proof light fixture provides 10,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 10,000 lumens with a color temperature of 6000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The HBLP-1MLED offers several mounting options including ceiling mounting, pendant mounting, wall mounting and cable mounting. Mounting Option Notes: Pendant mounting option requires conduit be supplied by the installer. Wall mounting option comes with Junction Box, Fixture Hanger Cover and Rigid Pipe Sweep. Swivel bracket mounting option comes with Swivel Bracket, Bracket to fixture hardware, and Cable Connector. Ceiling mount option comes
Related Products
Explosion Proof LED Light - Class 1 & 2 Division 1 & 2 LED Light
Explosion Proof LED Light - Class 1 & 2 Division 1 & 2 LED LightMade in the USA The EPLSB-LED-12W Explosion Proof LED light from Magnalight can be configured to run on 120/240 Volts AC or 12/24 Volts DC and provides operators with a very long lived and powerful alternative to traditional HID and incandescent strobe lights. Weather proof and Nema 4X compliant for marine use, this LED light is avaliable in a variety of mounting configurations and has several color options available. The powerful and durable EPLSB-LED-12W explosion proof LED light from Magnalight is approved for use in marine locations and is ideal for industrial applications, confined spaces, hazardous work areas where a powerful and durable alternative to standard incandescent and HID lighting is preferred. The lamp housing is weatherproof and constructed of copper-free aluminum alloy featuring a baked on powder coat finish, o-ring sealed glass dome with double pitch acme threads, and stainless steel hardware for corrosion resistance. This unit is not intended for high bay applications but performs well at standard heights and is available in red, blue, green, amber, and white LED colors. Click Photo to Enlarge Click Photo to Enlarge This hazardous area light is U.L. approved Class 1 Division 1, Groups C and D, Class 1 Division 2 Groups A, B, C, D, and Class 2, Division 2, Groups F and G. These lights are also compliant with NEMA 4X standards and marine-rated for use in salt water environments. The high power LED cluster is protected by an internal cooling fin array that reduces heat build for longer LED life and higher light output consistency. These LED explosion proof lights have 3/4" hubs and can be can be configured to run on 120/240 Volts AC or 12/24 Volts DC. This LED light has a T6 termperature rating and and an operating temp range of -55 C to 85 C. The LED output of these beacons is rated at 141 Candela and provides highly effective light output that compares to traditional incandescent and HID units. This explosion proof LED light is warrented for 5 years against manufacturing defects. Suggested applications: ship yards, boat yards, plants, manufacturing, vessels, petrochemical plants, barges and oil rig and oil field applications. -------------------------------------------------------------------------------- Made in the USA Quality LED Benefits 1. High Power LED. 2. Heat Baked Powder Coat Finish. 3. Rugged Non Sparking Aluminum Lamp Housing. 4. Shock Resistant Glass. 5. Sealed Glass Enclosure. 6. Efficient Heat Dissipation.. 7. Low Maintenance. 8. Corrosion Resistant Nema 4X Marine Compliant. 9. Stainless Hardware. 10. Double Pitch Acme Threads. 1. Long lamp life. 2. High efficiency and low amp draw. 3. High durability and reliability. 4. High output and very good color rendering. 5. Vibration and shock resistant. 6. Low maintenance. 7. Low temperature. 8. Less frequent outages, higher output improves workplace safety. Specifications / A
GreenLEDBulb Super Bright 100 Watt LED Industrial, High Bay light Warm, Pure or Cool white
UL Approved and CE, RoHS Certified. Build time: for samples, 7days from day payment is received; for mass production, 14-20days.
Magnalight Class 1 Division 1 & II Explosion Proof 150 Watt High Bay LED Light Fixture 10,000 Lumens
The Magnalight HBLP-1MLED High Bay light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class 1 Division 1&2, Class 2 Division 1&2 explosion proof light fixture provides 10,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 10,000 lumens with a color temperature of 6000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The HBLP-1MLED offers several mounting options including ceiling mounting, pendant mounting, wall mounting and cable mounting. Mounting Option Notes: Pendant mounting option requires conduit be supplied by the installer. Wall mounting option comes with Junction Box, Fixture Hanger Cover and Rigid Pipe Sweep. Swivel bracket mounting option comes with Swivel Bracket, Bracket to fixture hardware, and Cable Connector. Ceiling mount option comes
